WILDR-MIU Addressable Master Radio
Wireless RS-232, RS-485, RS-422 , Access Control Interface Transcivers

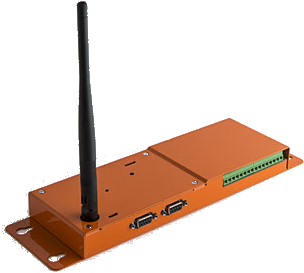

Master Radio

Applications include:

  • Wireless Access Control Interface: panel and door interface (reader lines, & door status)
  • Serial Data Communication
  • WILDR Management-Monitor Radio (WMR) remote branch control radios, configure and query status of radios, individually, or via broadcast commands
  • WILDR Repeater Radio (WILDR-RPT) extending the range to 2 miles (LOS), several hundred feet indoors

The Core Radio is designed to provide multiple interfaces for multiple applications

  • Console port (db-9 RS-232 configuration port at 115.2 kbps).

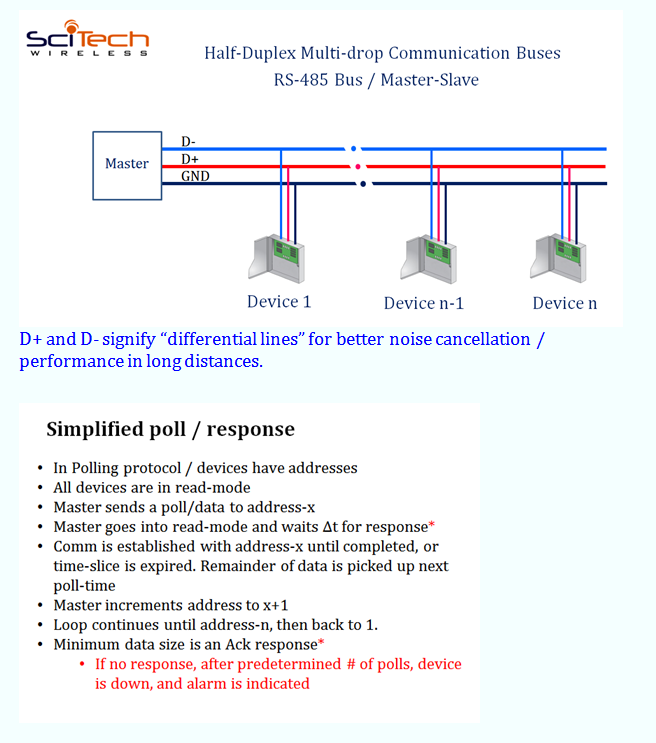

  • Data interface ports (RS-232, RS-422, RS-485) up to 115.2 Kbits/sec (selectable) transmission rate. Click on the link for a short overview of serial Multidrop bus protocol Figure.
  • GPIO lines for Access Control Applications via the Auxiliary Board, or other TTL I/O lines
  • Encrypted packets in addition to specific site-code security cipher

    • WILDR PART1

WILDR-MIU1
Addressable Single-Door or Access Panel Interface Radio
Wireless Card / Badge / Credential Reader Interface

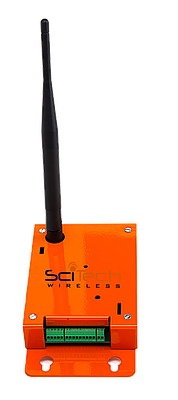

Single-Door/Panel Radio

When located by the door, provides power to the reader and door strike. No need for an additional/external battery

  • One radio at the panel, and one at the door for point-to-point applications
  • Wiegand (Data0, Data1), or Clock & Data (Mag-stripe) interface
  • LED-A, LED-B, Door Position, Tamper, REX (Request to Exit)
  • Electric Strike control, Electric Strike Power
  • Large data buffer (1024 bytes) for Smart Cards; supports all formats

WILDR-MIU2
Addressable Dual-Door / Panel Interface Radio [Virtual Cage Radio, Data Center Application]

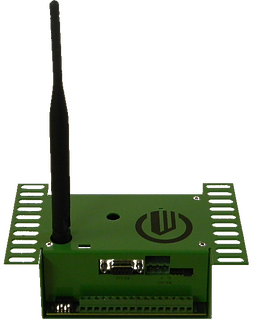

Virtual Cage Radio

Designed to replace security cages, and limit access to client rack cabinets

  • Controls access to each rack cabinet (front and back)
  • A 2-door control-panel (from any manufacturer) opens up to 126 rack doors (63 racks, front & back doors), also includes broadcast and house-keeping packets
  • Controls smart door handle with integrated card reader, LEDs, strike, and door position
  • Provides power to the door handle (strike and reader)
  • Integrated temperature sensor (up to 98 °C) with selectable Alarm Level
  • Companion software (WILDR Management Monitor) provides visibility and logs all events
  • Can send commands to an individual radio, or broadcast to all: Reset, change channel, change RF output power, open door, close door, change data-rate, turn LEDs on or off, and other custom commands
